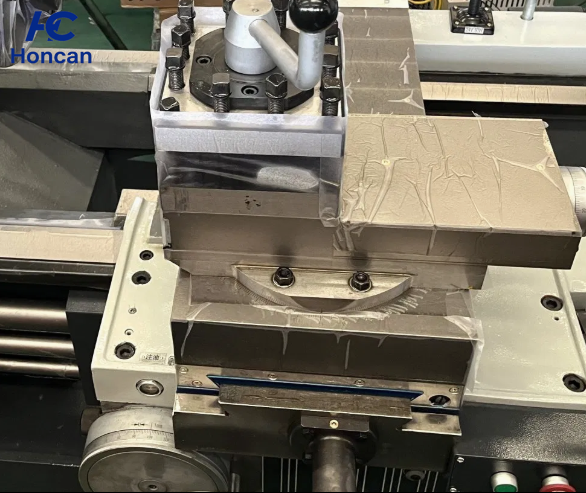

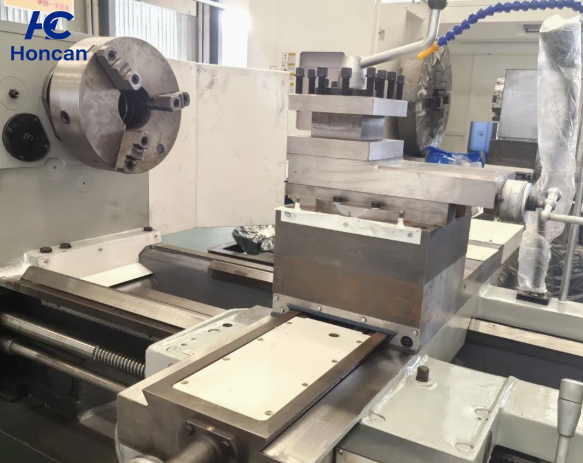

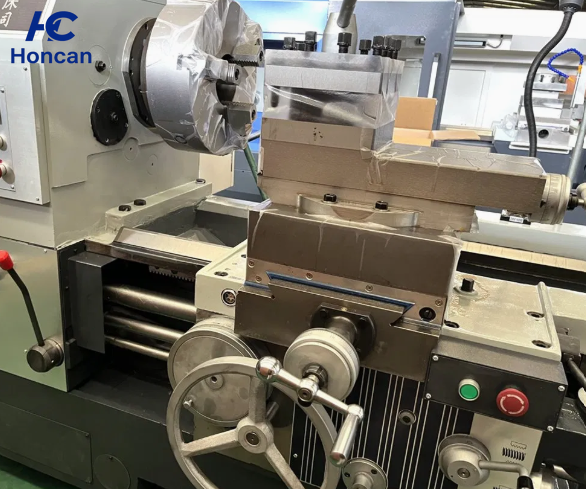

| ITEMS | UNIT | CW6180 |
| Capacity | Max. diameter swing over bed | mm | Ø800 | Ø800 | Ø800 |
| Max. diameter swing over cross slide | mm | Ø550 | Ø520 | Ø480 |
| Distance between centers | mm | 1500 | 1500 | 1500 |
| Maximum machining length | mm | 1250 | 1250 | 1200 |
| Width of bed way | mm | 550 | 65-250 | 600/650 |
| Max. load capacity | T | 2 | 3 | 2.5/3 |
| Spindle | Spindle bore | mm | Ø105 | Ø105 | Ø104 |
| Spindle nose |
| C11 | C11 | C11 |
| Spindle taper hole |
| (Metric):120/1:20 | (Metric):120/1:20 | (Metric):120/1:20 |
| Spindle motor | KW | 11 | 11 | 15 |
| Spindle speed steps | - | Two gears frequency conversion | Three gears frequency conversion |
| Spindle speed range | rpm | 15-100/100-350 VF2 steps
32/0.095-1.4 | 15-100/100-350 VF2 steps
32/0.095-1.4 | (L):25-100
(M):80-260
(H):240-700 |
| Turret | Max.traverse of the turret | mm | 200 | 200 | 205 |
| Turret type | - | Manual 4 position | Manual 4 position | Manual 4 position |
| Tool shank size | mm | 32×32 | 32×32 | 32×32/40X40 |
| Feed | Traverse of cross slide | mm | 420 | 400 | 420 |
| Z axis feed grade /range | mm | 32/0.095-1.4 | 32/0.095-1.4 | 32/0.095-1.4 |
| X axis feed grade/range | mm | 32/0.042-0.7 | 32/0.042-0.7 | 32/0.042-0.7 |
| Carriage raid traverse speed | Mm/min | 3740 | 3740 | 3740 |
| Cross slid raid traverse speed | Mm/min | 1870 | 1870 | 1870 |
| Metric thead grade/range | mm | 22/1-15mm | 22/1-15mm | 22/1-15mm |
| Inch thread grade/range | T.P.I. | 26/14-1 | 26/14-1 | 26/14-1 |
| Tailstock | Tailstock quill diameter | mm | Ø100 | Ø100 | Ø100 |
| Tailstock quill taper | - | Morse NO.5/6 | Morse NO.6 | Morse NO.6 |
| Tailstock quill travel | mm | 250 | 250 | 250 |
| Dimensions | Width x Height | mm | 3600X1600×1500 | 3650X1700×1550 | 3700X1750×1500 |
| Weight | Net weight | KG | 4500 | 5500 | 5000/5700 |
