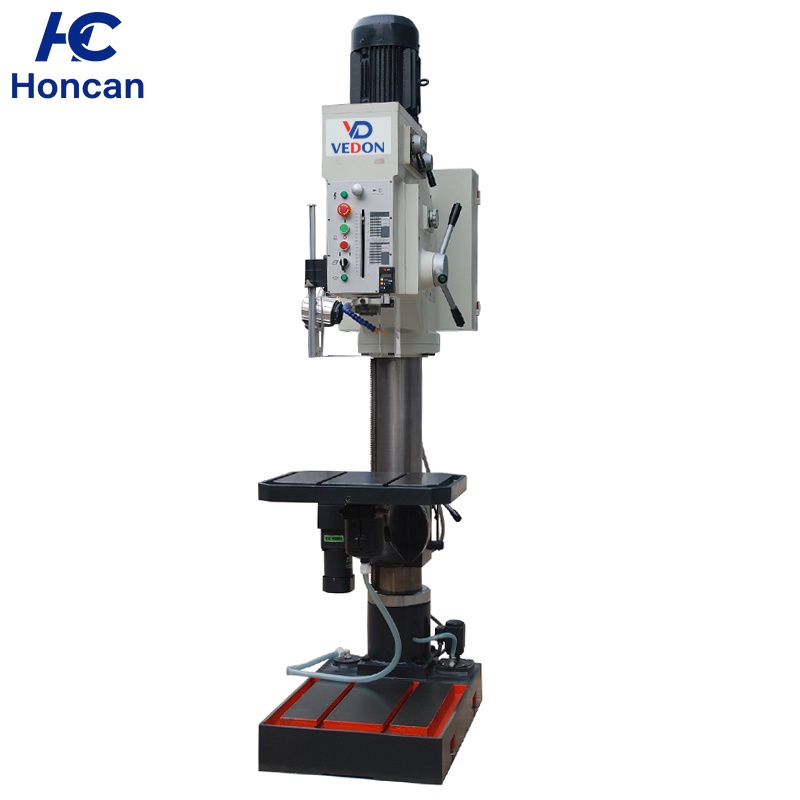

| Item | Vertical Drilling Machine |
| Model | Z5040A |
| Max. drilling diameter | 40mm |
| Max. tapping diameter | M24 |
| Distance from spindle axis to generating line of column | 360mm |
| Distance from spindle nose to workable surface | 600mm |
| Distance from spindle nose to base plate surface | 1215mm |
| Spindle travel | 180mm |
| Max. adjustment of workable and table rest | 560mm |
| Swivel of table and table rest | +/-45° |
| Spindle taper | MT4 |
| Range of spindle feeds | 42-2050rpm |
| Number of spindle feeds | 12 |
| Spindle feed range | 0.07,0.15,0.26,0.4mm/r |
| Column diameter | 160mm |

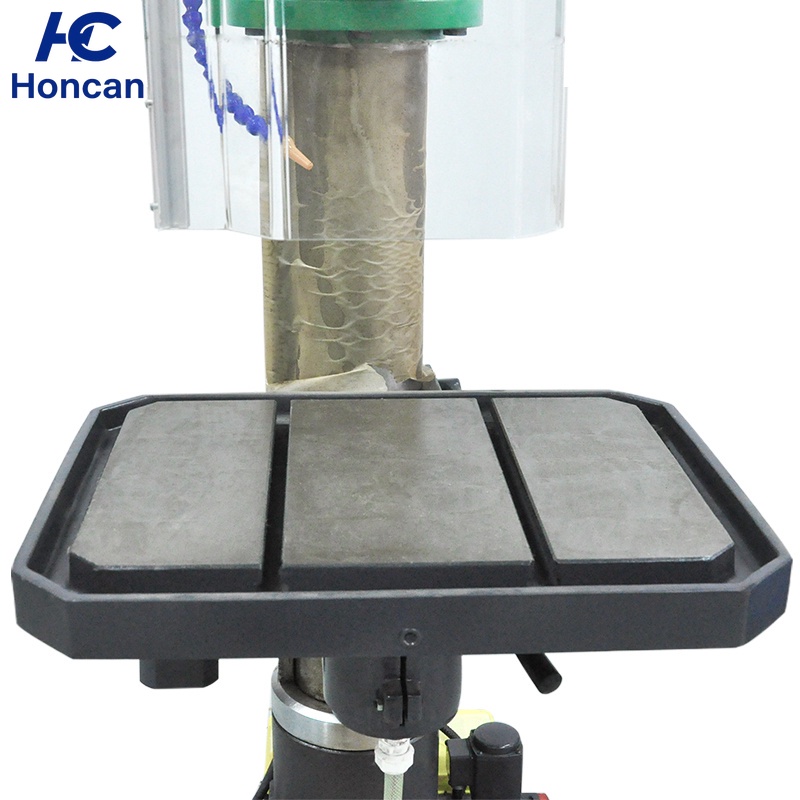

| Effective working area of table (L*W) | 370*500mm |
| Effective working area of base plate (L*W) | 460*450mm |
| Dimension of T-slot of table and base plate | 2-14mm, 2-16mm |
| Main motor power | 2.2/2.8kw |
| Package size | 700*1150*2150mm |
| Weight | 740/800kg |
