With digital control at its core, it breaks through the operational limitations of traditional lathes, transforming complex processes into precise instructions and providing efficient, stable, and consistent machining solutions. The spindle utilizes high-precision bearings for strong vibration resistance, maintaining stable accuracy even during long-term high-speed operation. The bed is constructed from a single piece of cast iron, treated with aging to eliminate internal stress, resulting in minimal deformation and ensuring long-term machining stability.

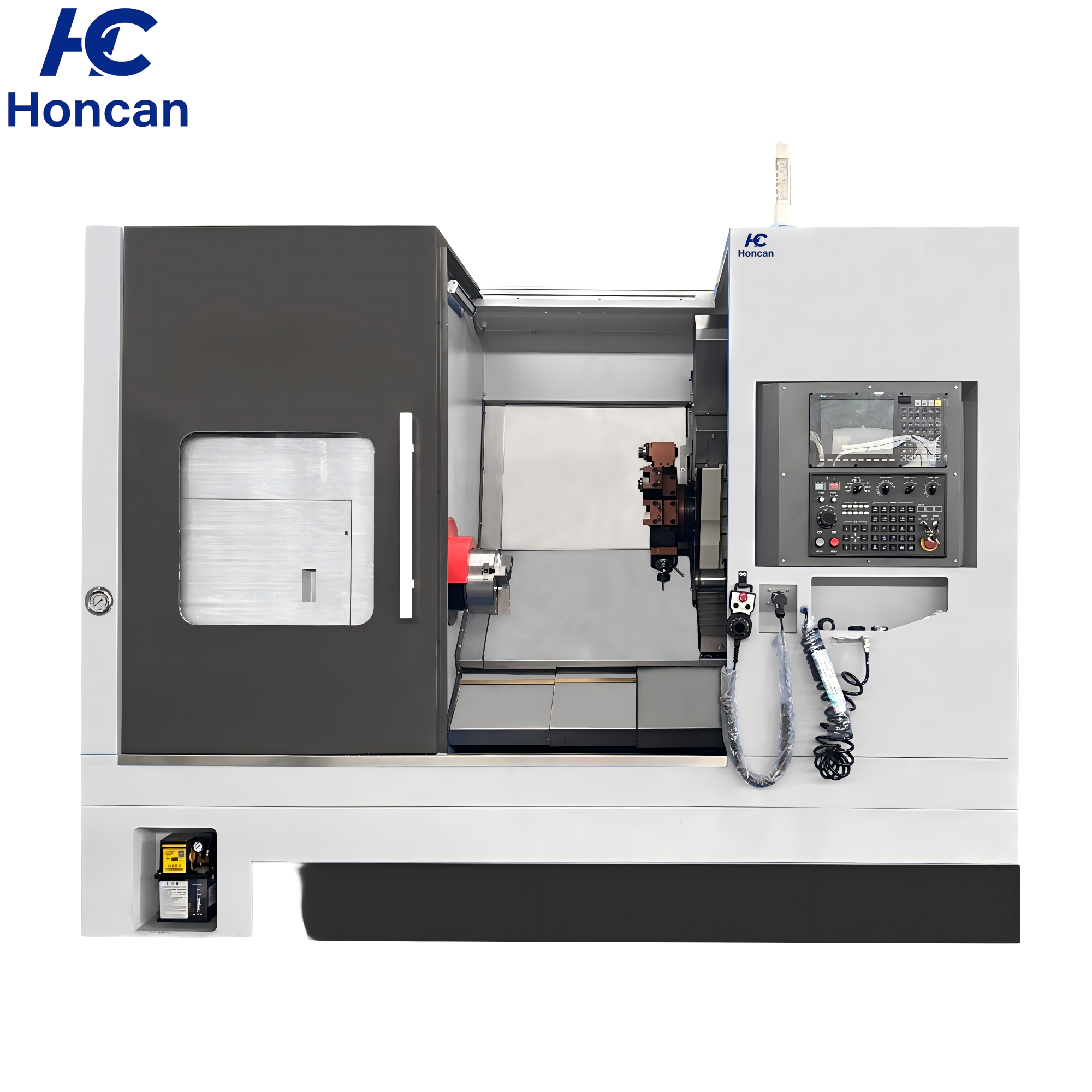

| Specification | TCK52DY |
| Maximum swing diameter on the bed | Φ670mm |
| Maximum swing diameter of carriage | Φ400mm |
| distance between centers | 650mm |
| Maximum machining length | 450mm |
| Spindle nose specification | A2-6 |
| Spindle motor power | 11-15kw |
| Spindle unit diameter | 200mm |
| Spindle speed | 4200rpm |
| Spindle through hole diameter | Φ66mm |
| Inner dia. of pull through hole | Φ52mm |
| Chuck specifications |
|

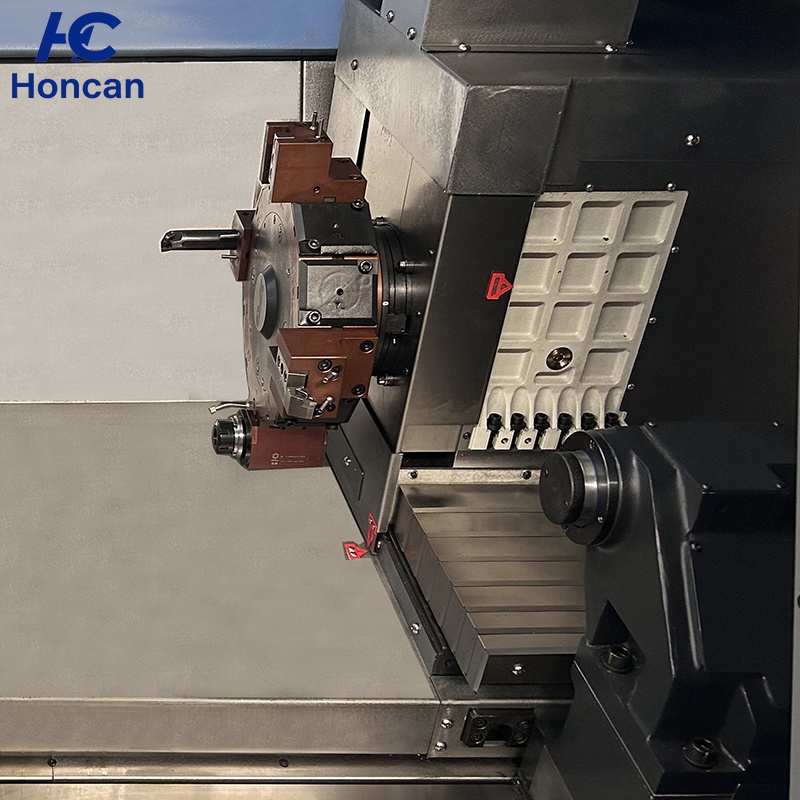

| Type | Y-axis of power turnit at station 12 |
| Power tool holder | BMT55 |
| X/Z axis travel | 270/650mm |
| Y axis travel | ±45/50mm |
| X/Z axis screw specifications | 3210/4010 |
| Repeat positioning accuracy | ±0.005 |
| Specification of external tool holder | 25*25mm |
| Maximum boring bar diameter | 32mm |
| Tool change and lock time in adjacent positio | 0.16s |

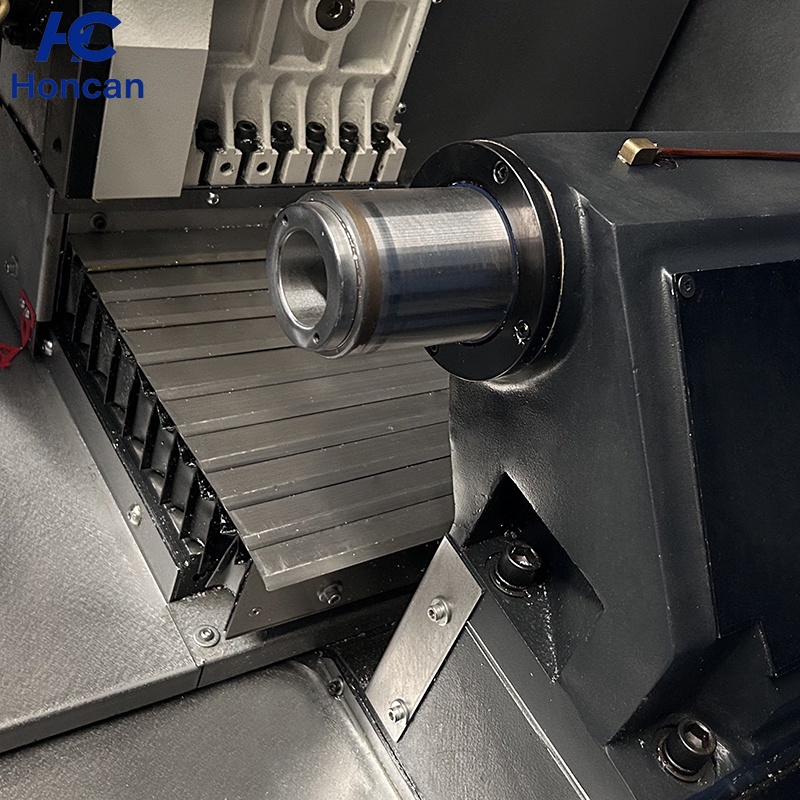

| Tailstock type | Hydraulic |
| Tailstock stroke | 480mm |
| Tailstock sleeve diameter | Φ80mm |
| Tailstock sleeve travel | 100mm |
| Taper of taper hole of tailstock sleeve | MT5 |
| Fast moving speed X/Z | 20/24M/min |
| Line width | 45 Roller mm |
| Serve motor torque X/Z | 3/3Kw |
