With digital control at its core, it breaks through the operational limitations of traditional lathes, transforming complex processes into precise instructions and providing efficient, stable, and consistent machining solutions. The spindle utilizes high-precision bearings for strong vibration resistance, maintaining stable accuracy even during long-term high-speed operation. The bed is constructed from a single piece of cast iron, treated with aging to eliminate internal stress, resulting in minimal deformation and ensuring long-term machining stability.
| Model | TCK52D |
| technical specifications | unit | parameter |
| machine range | Swing over bed | mm | Φ650 |
| Maximum rotation diameter on the saddle of the bed | mm | Φ400 |
| Maximum processing length | mm | Φ480 |
| Maximum machining diameter | mm | Φ400 |
| center distance | mm | 600 |
| Spindle | Spindle head type | mm | A2-6 |
| spindle bore | mm | 66 |
| Rod diameter | 52 |
|
| Maximum spindle speed | r/min | 4000 |
| Rated output of main motor | Kw | 15/18.5 |

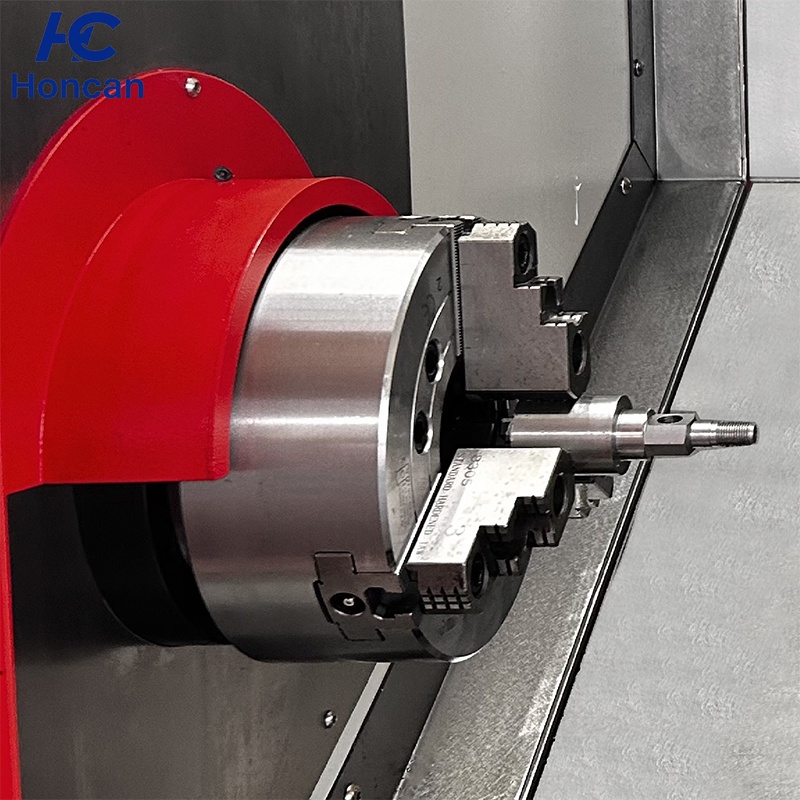

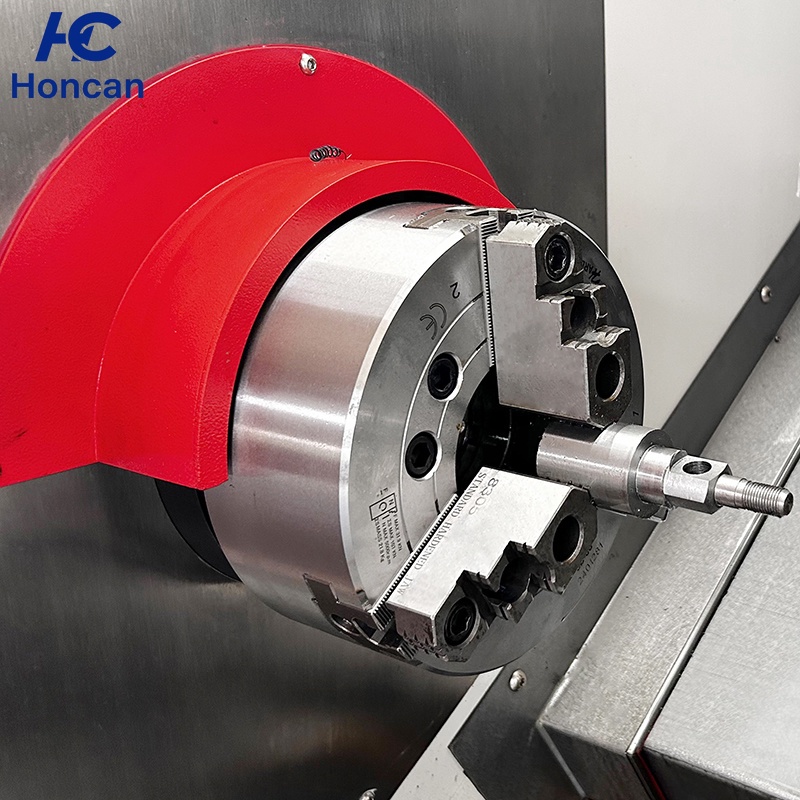

| clamp | hydraulic chuck | inch | 8 |
| tailstock | Tailstock sleeve | / | MT5 |
| Tailstock movement type | / | Sliding board driven |
| Quill diameter | mm | 80 |
| Tailstock travel | mm | 490 |
| Tailstock guideway type | / | hardened guideway |
| Bed saddle | Tilt angle | degree | 30 |
| Moving distance X | mm | 260 |
| Moving distance Z | mm | 610 |
|
|
|
| Fast moving speed X/Z | m/min | 30/30 |
| Servo motor X/Z | KW | 2.5/2.5 |

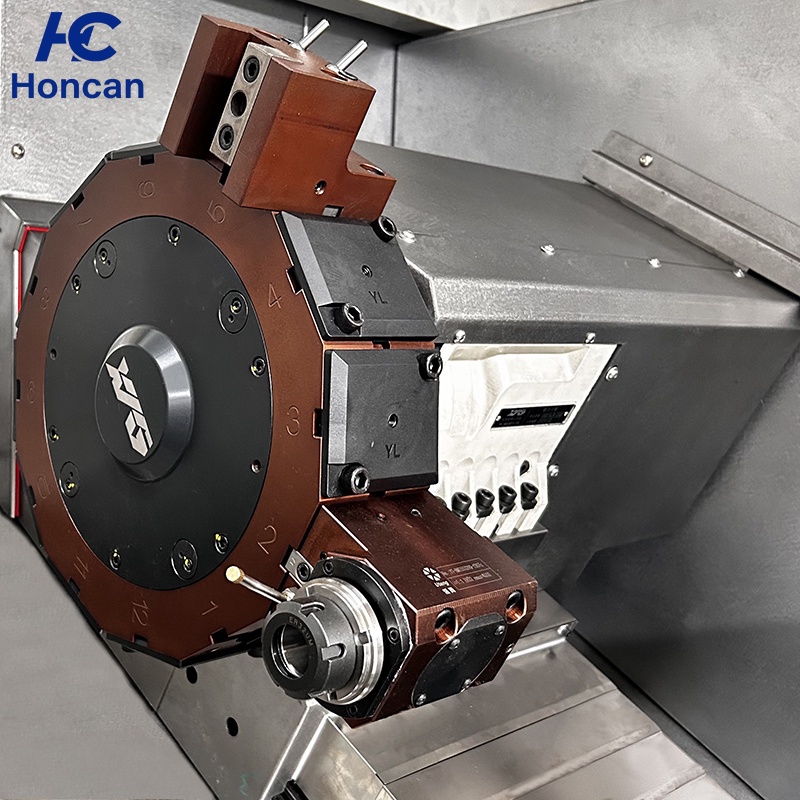

| Turret diameter | mm | Knife disc diameter 380 |
| Adjacent tool change time | $ | 0.5 |
| Number of knife positions | / | 12 workstations |
| Turret type | Power turret | BMT55 - 12-station live tooling |
