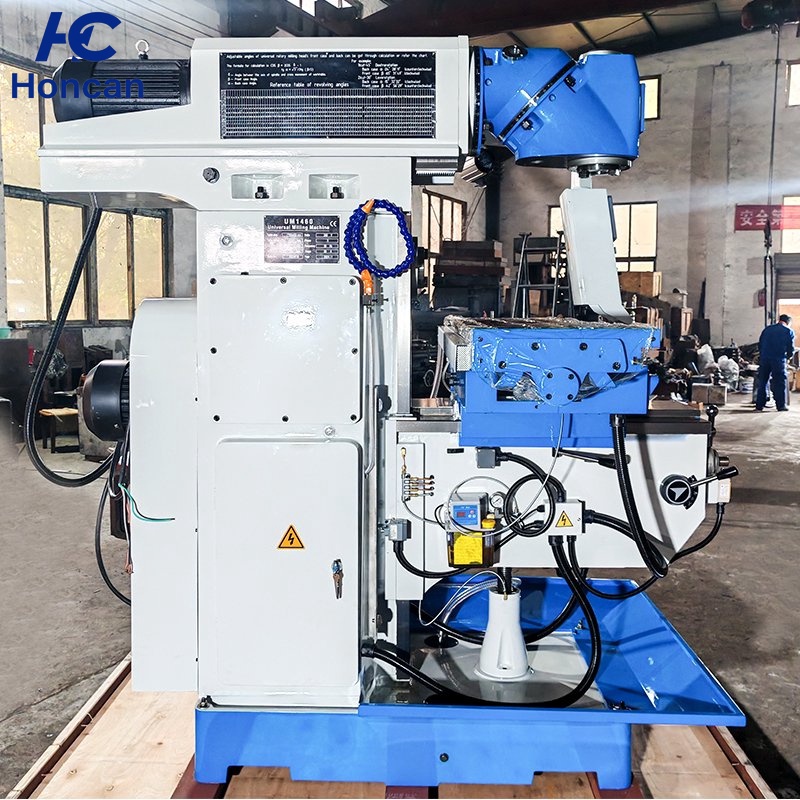

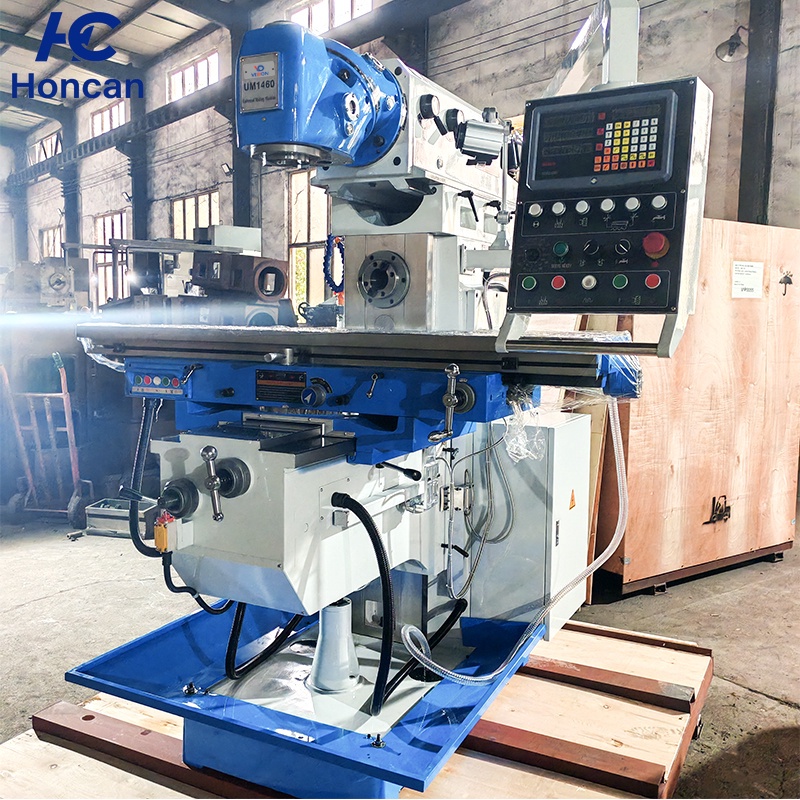

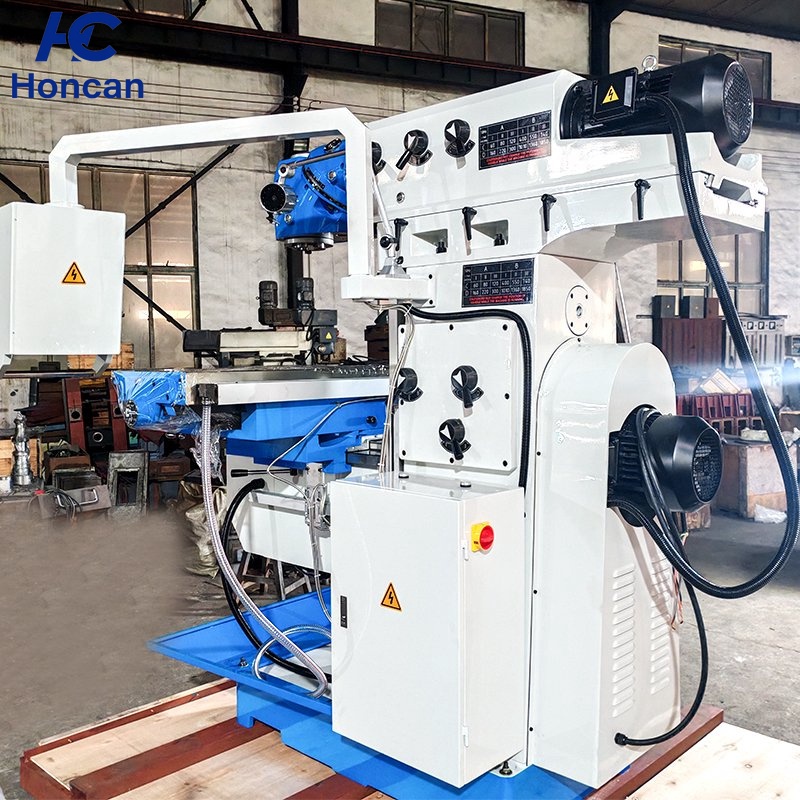

| (UM1460Technical Parameters) |
| Item | Details |
| Spindle taper | 7:24 ISO 50(Horizontal/Vertical) |
| Distance spindle to column surface | 1700X400 mm |
| Worktable swivel angle | ±45° |
| Number | 4 |
| T-slots of table width | 18mm |
| Distance | 100mm |
| Spindle speeds range | 12steps 50-1520r.p.m(Vertical)12steps 60-1850r.p.m(Horizontal) |
| Longitudinal | 1300 mm |
| Table travel Cross | 420 mm |
| Vertical | 600 mm |
| X/Y. axes feeding | 25-800 mm/min Rapid feeding 800 mm/min |
| Z axes feeding | 8-267 mm/min Rapid feeding 267 mm/min |
| main horizontal spindle | 0-440 mm |
| milling head horizontal(low position) | 150-590 mm |
| milling head horizontal(side position) | 340-780 mm |
| milling head horizontal(hish position) | 530-970 mm |
| Distance from spindle nose to worktable | 50-650 mm(Vertical) |
| Distance from Vertical spindle cente, to guideway surface | 0-1000 mm(Vertical maillingspindle head) |
| horizontal swivel angle of milling head | 360° |
