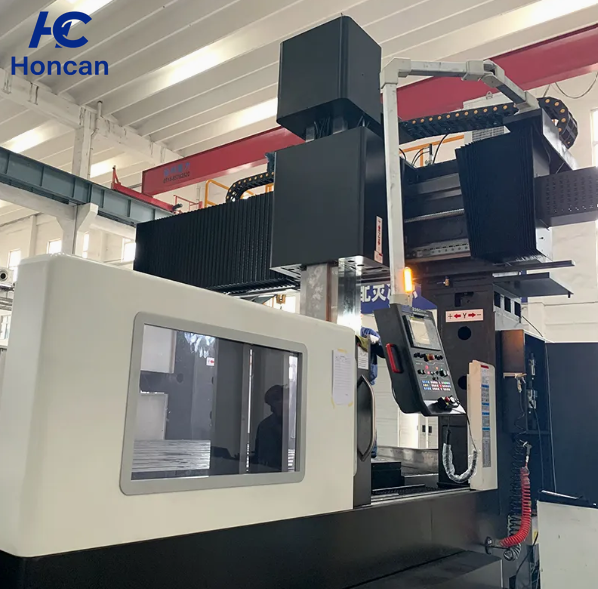

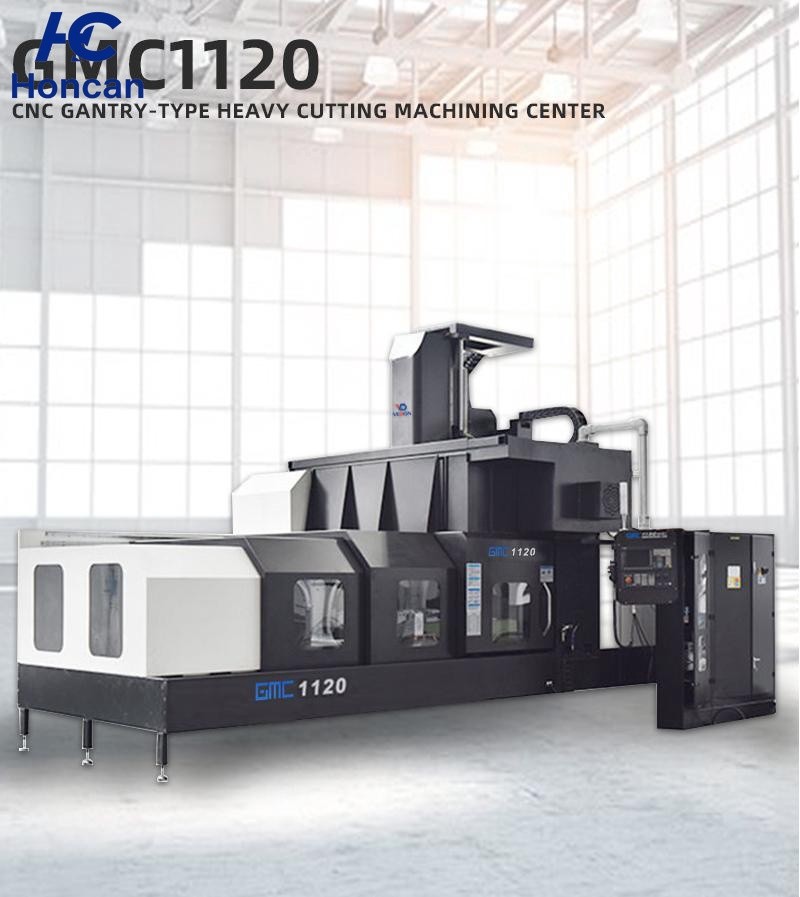

Gantry Machining Center

Model: GMC1120
Worktable longitudinal travel: 2200mm
Slide carriage transverse travel: 1700mm
Milling head vertical travel: 800mm

- PRODUCT PARAMETERS -

Model	GMC1120
Worktable longitudinal travel	2200mm
Slide carriage transverse travel	1700mm
Milling head vertical travel	800mm

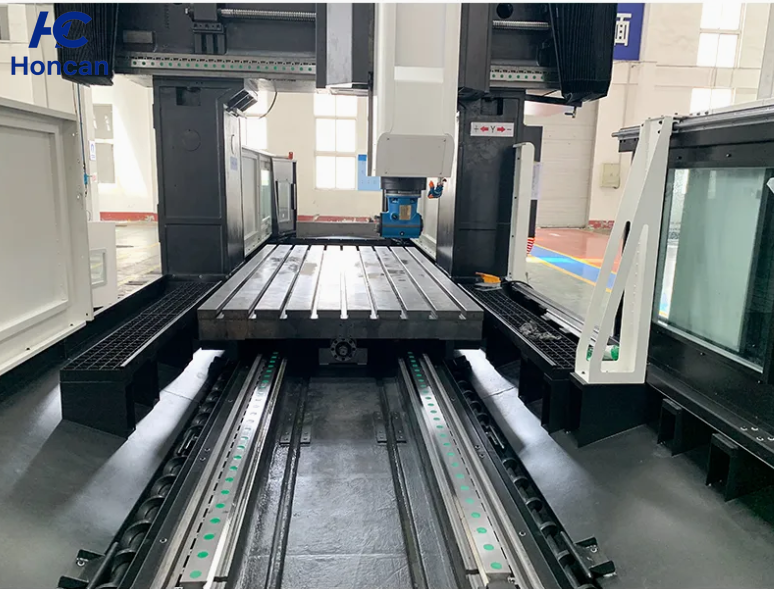

Worktable size	2000x1100mm
Max. load of worktable	3500kg
Number/Width/Distance of T-slot	7/22/160mm
Gantry width	1600mm
Distance from spindle end to worktable surface	150-950mm
Spindle taper	BT50
Spindle speed	10-3200rpm
Spindle motor power	15/18.5kw
Feed speed X/Y/Zaxis	1-10000/1-10000/1-8000 mm/min
Rapid feed X/Y/Zaxis	15000/20000/12000 mm/min
Positioning accuracy X/Y/Z Axis	+0.005/B17300JIS
Repeat positioning accuracy X/Y/Z Axis	+0.003/B17300JIS
Overall dimension	7450/4200/4580mm
Machine weight	18000kg
