With digital control at its core, it breaks through the operational limitations of traditional lathes, transforming complex processes into precise instructions and providing efficient, stable, and consistent machining solutions. The spindle utilizes high-precision bearings for strong vibration resistance, maintaining stable accuracy even during long-term high-speed operation. The bed is constructed from a single piece of cast iron, treated with aging to eliminate internal stress, resulting in minimal deformation and ensuring long-term machining stability.
| Project | Unit | TCK52-600 |
| Rotation diameter on the bed surface | mm | Φ520 |
| Maximum turning diameter on skateboard | mm | Φ300 |
| Machining length | mm | 600 |
| Main motor power | KW | 7.5 |
| Spindle speed | rpm | 2500 |
| Spindle hole diameter | mm | Φ80 |
| X-axis stroke | mm | 200 |
| X-axis motor torque | NM | 8 |
| Z-axis travel | mm | 600 |
| Z-axis motor torque | NM | 12 |
| X- Z-axis connection method |
| Direct connection |
| Maximum spindle speed | rpm | 3000 |
| Main shaft speed series |
| Infinitely variable speed |
| Main spindle end form and code |
| A2-8 |
| Inner diameter of spindle through-hole | mm | Φ80 |
| Inner diameter of spindle pull tube | mm | Φ56 |

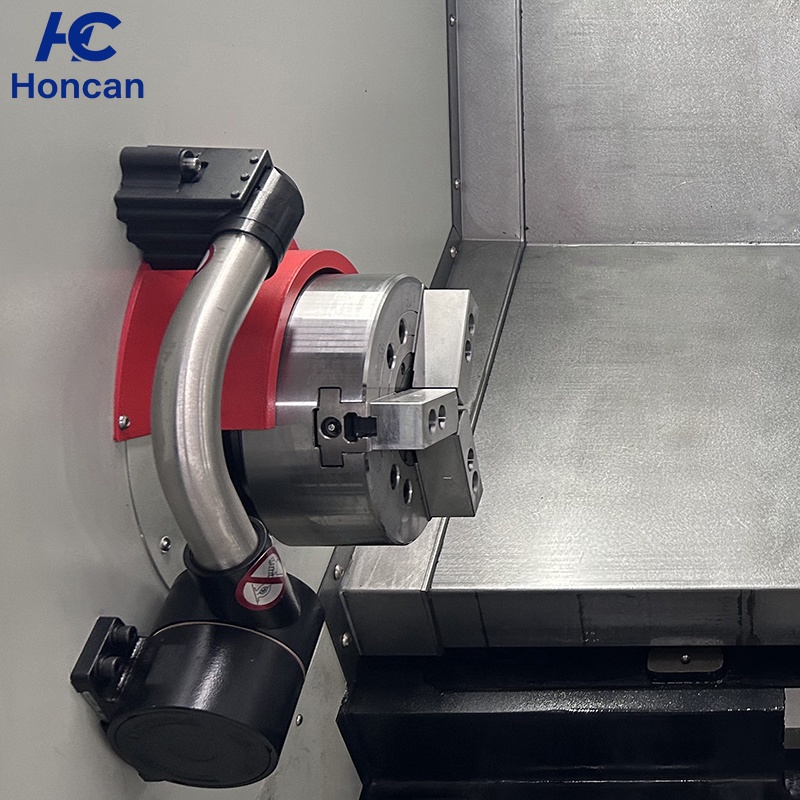

| Standard chuck specifications | inch | 8* |
| Fast moving speed | m/min | 20 |

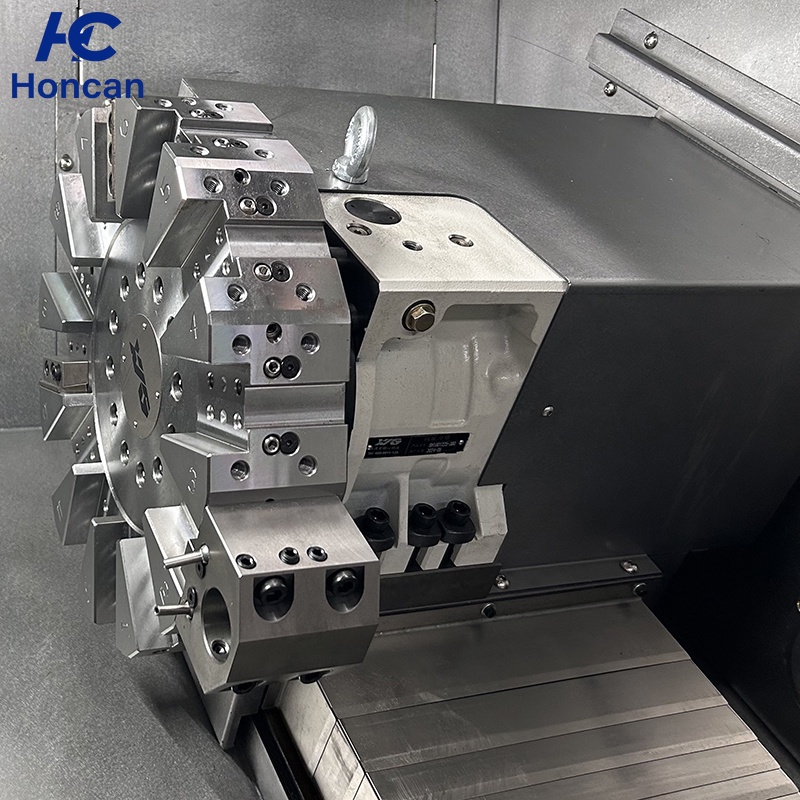

| Knife holder form |
| Horizontal 8-station hydraulic turret |
| X/Z bidirectional positioning accuracy | mm | ±0.008 |
| X/Z unidirectional repetitive positioning accuracy | mm | ±0.004 |

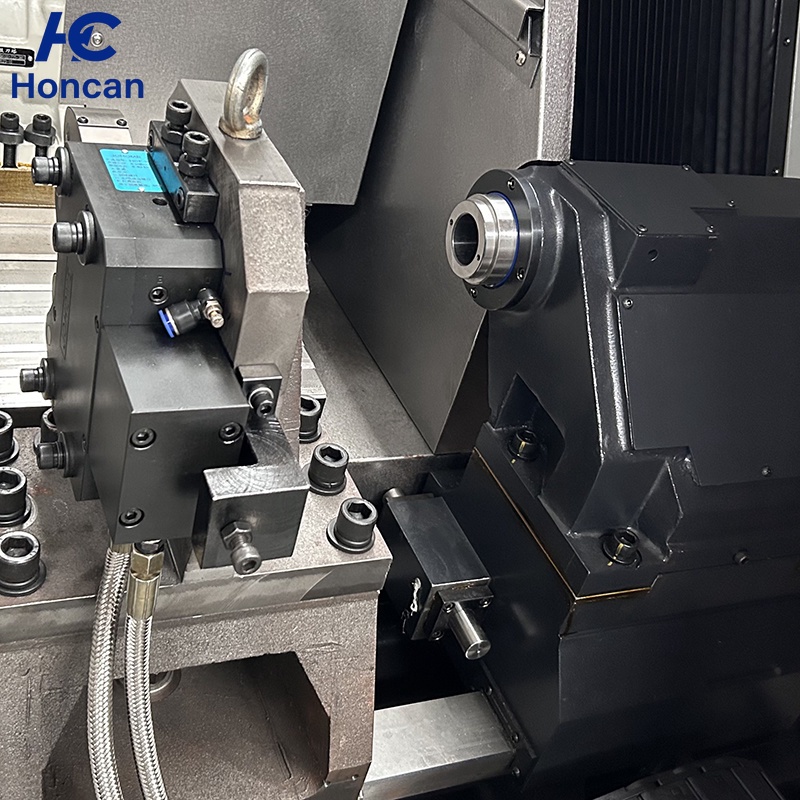

| Quill diameter | mm | 70 |
| Sleeve travel | mm | 100 |
| Tail seat travel | mm | 450 |
